Combined melt pressure- and melt temperature-
sensor DTS


The combination of both pressure and temperature measurement systems is the optimal solution for customers whose extruders have only one port available. Our special membrane technology ensures maximum durability and provides reproducible measurement results. Depending on the sensor type, standardized output signals (1, 2, or 3.33 mV/V) are provided.

KMK's pressure sensors operate based on the established principle of strain gauge technology.

  • Exclusive use of mercury-free measuring medium
  • Very high-quality standard
  • Titanium nitride coating to prevent adhesion of plastic melt
  • Pressure range from 0-100 to 0-1.500 bar
  • Connection: ½"-20 UNF-2A, M18 x 1.5, alternatively M14 x 1.5
  • Integrated Type J thermocouple
  • Operating temperature up to 410°C at the membrane
  • Various special stem lengths
  • 6-pin electrical connection
  • 100% compatible with competitors

standard, optionally available, not available

Melt Pressuresensors - Comparision

Compare all melt pressure sensors with each other

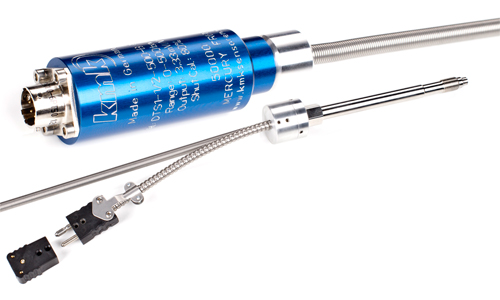

Melt pressure transducer DTS1

Our combined melt pressure and melt temperature transducer is supplied in the standard version with a sheathed thermocouple type J (Fe-CuNi). Optionally, the thermocouples type L (Fe-CuNi), type K (NiCr-Ni) and the measuring resistor PT-100 are available. In addition, a reinforced diaphragm made of 2.4610 can be selected.
